THE PRODUCT LINE - LABORATORY EQUIPMENT

contact us

SEED POLISHER/BRUSHING MACHINES SEED DE-AWNER
Type 4100.10.00 Type 4600.00.00 Type 5310.00.00
This small machine is especially designed to brush (scarify/polish) very small quantities e.g. breeding material or stock seed. Very suitable for use in breeding stations. Such as brushing primula’s and to win seed from the buds. For vegetable seeds it can be used for polishing tomato and carrot seeds.
In many cases the brushing (scarifying/polishing) of seeds is the first step in the cleaning process. The machine has many applications in flower, herb, cactus, tree and vegetable seeds.
This de-awner is used for de-bearding and polishing of seeds. The de-awning principle is used for carrot, spinach, beet and tomato seeds. The seed skin or beard is softly removed because the seeds rub against each other.
Please CLICK HERE to find more information
and contact us
Please CLICK HERE
to find more information
and contact us

HAND SCREENS SCREENING MACHINE WINNOWER
Hand screens Screening machine Type 4111.10.00
The hand screens are used for cleaning small seed lots, analysing the purity of received seed lots, determining the screens for the larger air screen cleaning machines and for check during the production of seed pellets.
Hand screens are available with a diameter of 200, 315 and 400 mm and all different kind of perforations are available.
The screening machine is suitable for hand screens with a diameter of 200 and 315 mm. Different hand screens can be stacked on top of each other and the seed lot that you want to calibrate or separate is put on the top screen. By using different perforations and a blind screen at the end this is an automatic sizing/calibrating process for small seed lots.
The winnower is used to utilise the differences in specific weight between the seeds and other parts.

Air separates the seeds from the husks.

It is very suitable for cleaning small seed lots.

Please CLICK HERE
to find more information
and contact us
Please CLICK HERE
to find more information
and contact us
Please CLICK HERE
to find more information
and contact us

SEED BLOWERS   AIR SEPARATOR
Type 4110.10.00 Type 4110.21.00 Type 4604.10.00

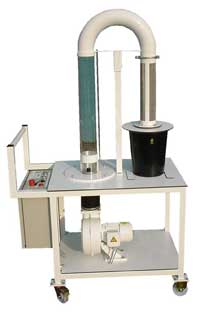

This batch system is very suitable for cleaning very small seed lots. Very interesting for breeding stations.
The air separation is so accurate that you can even sort very small seeds, like begonia.

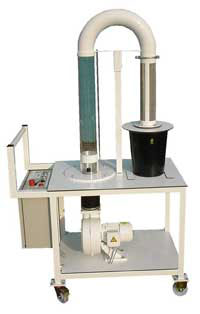

This batch system is very suitable for cleaning small seed lots. The diameter of the tube is Ø 200 mm. Very interesting for breeding stations. The air separation is so accurate that you can even sort large and heavy seeds, like beans and zucchini.

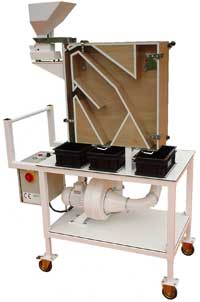

This air separator is used to utilise the differences in specific weight of the seeds and other parts and has many applications in flower, herb, tree, cactus, grain and vegetable seeds. E.g. to separate lighter seeds, straws, chaffs and dust. But also to enhance viability and germination by separating the seeds in three fractions, based on their specific weight.

AIR SCREEN MACHINE
Type 4601.00.00

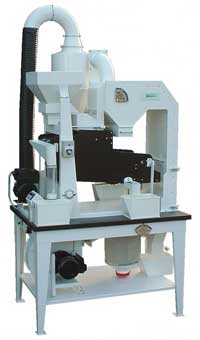

This air screen cleaning machine is very suitable for cleaning your flower, herb, cactus, tree, grain and vegetable seeds on their size and specific weight.

It can be used for smaller seed lots for pre- or fine cleaning. By means of the screens you can separate straws, chaffs, dust and broken seeds.

With the air separation system you can separate the heavy form the light seeds.

Please CLICK HERE
to find more information
and contact us
Please CLICK HERE
to find more information
and contact us
Please CLICK HERE
to find more information
and contact us

GRAVITY SEPARATOR   INDENT CYLINDER
Type 4605.00.00 Type 4603.00.00 Type 4602.00.00
This smaller design gravity separator is very suitable for very small seed lots. The purpose is to separate empty seeds, insect damaged seeds, stones and other lighter or heavier materials from the seed lot.


Type 4603.00.00. This is the same as type 4605.00.00, but only for larger capacities. The seeds are separated based on their specific weight.

This is the same as type 4605.00.00, but only for larger capacities.

The seeds are separated based on their specific weight.

This machine is used for e.g. separating plant parts and weeds in carrot, onion and lettuce, but also for flower seeds like marigold and impatiens.

Besides it is used for calibrating the seeds based on their length to obtain more uniformity to produce seed pellets.

Please CLICK HERE to find more information
and contact us
Please CLICK HERE
to find more information
and contact us

BELT GRADER SEED COUNTER ROTARY SAMPLE DIVIDER
Type 4154.20.00 Type 5101.51.00 Type 5260.00.00
This belt grader is used to separate round from other shaped seeds/parts or weeds in flower, herb, tree, cactus and vegetable seeds. E.g. separation of flower parts from primula seed or double seed from begonia. For vegetable seeds separation of triangular or sharp shaped seed from round spinach seed or seeds with a small needle from lamb’s lettuce.
This seed counter is used for accurate and fast counting of small seed lots. You can use the seed counter for analysing the thousand corn weight or to count an exact number of seeds. Seeds from 0,3 mm to 18 mm can be counted.

Also 6, 12 and 24 channel counting machines available.
With this seed sample divider you can automatically divide your seed sample into 4 fractions at one time in a quick and accurate way.
Please CLICK HERE
to find more information
and contact us
Please CLICK HERE
to find more information
and contact us

Please CLICK HERE
to find more information
and contact us


LABORATORY SEED THRESHERS
Type 3032.50.00



This machine is used for damage free threshing seeds out of single plants, capsules or heads (ears).

Mainly used for the rotary threshing of very small quantities of seeds.

Quick and easy cleaning.

Very suitable for breeding and research stations.

Please CLICK HERE to find more information
and contact us



CALIBRATING (SIZING) MACHINE
Type 4065.31.00
This seed calibrating (sizing) machine uses very accurate screens to separate seeds based on their size.

You can use round or slotted screens. Calibrating seeds is important if you want to pack seeds by weight, to create uniformity in young plants and for precision sowing equipment.


The machine can be delivered with three or four screens.

Please CLICK HERE to find more information and contact us
